Yaskawa JZRCR-NPP01B-1 Teach Pendant -Teach Pendant Controller for NX100 Robot Systems
Yaskawa JZRCR-NPP01B-1 NX100 Teach Pendant Product Overview

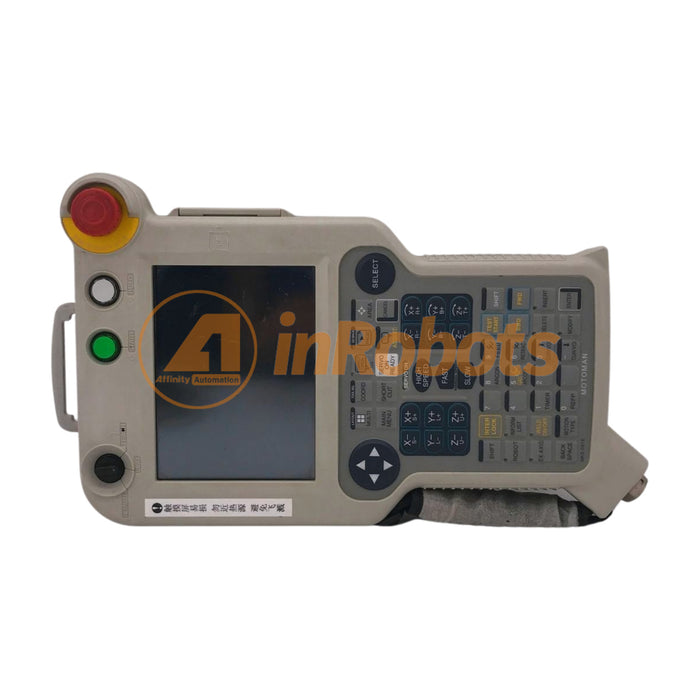

The Yaskawa NX100 JZRCR NPP01B 1 Teach Pendant is a professional handheld controller used to operate, program, and monitor Yaskawa NX100 series industrial robots. Built with durability and ease of use in mind, this pendant provides direct human machine interface (HMI) control for robot motion, trajectory teaching, status monitoring, and system diagnostics.
Designed for both production environments and commissioning tasks, the JZRCR NPP01B 1 pendant enables technicians and engineers to easily define robot paths, make real time adjustments, and troubleshoot robot systems quickly and efficiently.
JZRCR-NPP01B-1Key Features
-
NX100 Compatibility — Designed for Yaskawa Motoman NX100 robot controller systems.
-
Exact Part Number — JZRCR-NPP01B-1, Yaskawa Part No. 149450-3.
-
Robot Teaching & Programming — Provides the operator interface for NX100 robot teaching and programming tasks.
-
8-Meter Cable — The official specification identifies the pendant as supplied with an 8-meter cable.
-
Overlay Configuration — Supplied without an overlay; the appropriate NX100 overlay must be selected separately.
-
Replacement and Maintenance — Suitable for NX100 teach pendant replacement and maintenance requirements.
JZRCR-NPP01B-1 Application Scenarios
-
Teach Pendant Replacement — Used to replace a damaged or faulty JZRCR-NPP01B-1 teach pendant on Yaskawa Motoman NX100 robot systems.
-
Robot Teaching & Programming — Supports robot teaching and programming tasks through the NX100 programming pendant.
-
System Commissioning & Setup — Used during robot system setup and commissioning when pendant access is required.
-
Maintenance & Diagnostics — Supports maintenance personnel working with NX100 robot systems.
-
Production Floor Operation — Provides the operator interface for pendant-based robot operation and teaching tasks.
-
Spare Parts Inventory — Suitable for maintaining a replacement pendant for NX100 systems to support maintenance planning and reduce potential downtime.
Yaskawa JZRCR-NPP01B-1 Technical Specifications
Technical Specifications
| Brand |
Yaskawa Motoman |
| Part Number |
JZRCR-NPP01B-1 |
| Yaskawa Part Number |
149450-3 |
| Product Type |
Programming Pendant / Teach Pendant |
| Controller |
NX100 |
| Cable Length |
8 m |
| Overlay |
Not Included |
| Memory |
64M |
| Applicable System |
Yaskawa Motoman NX100 Robot Systems |
| Condition |
Used / Refurbished |
| Country of Origin |
Japan |
Compatibility should be verified with your specific robot controller version and system configuration before installation.
JZRCR-NPP01B-1 Compatibility and Identification
The Yaskawa JZRCR-NPP01B-1 is designed for Yaskawa Motoman NX100 robot controller systems. Before ordering a replacement teach pendant, verify the part number on your existing pendant and confirm compatibility with your Yaskawa Motoman NX100 controller.
Browse more Yaskawa Motoman Teach Pendants for DX100, DX200, NX100 and YRC1000 robot systems.
JZRCR-NPP01B-1 Repair Parts
Repair or refurbish your existing Yaskawa JZRCR-NPP01B-1 Teach Pendant with model-specific replacement parts.
Yaskawa NX100 JZRCR-NPP01 B-1 Teach Pendant Parts
Browse the complete repair-parts selection for the NX100 JZRCR-NPP01B-1 Teach Pendant.
Available repair components include:
Yaskawa NX100 Teach Pendant Repair Guides
FAQ
Is the JZRCR-NPP01B-1 compatible with the Yaskawa NX100 controller?
The JZRCR-NPP01B-1 is a programming pendant specified for Yaskawa Motoman NX100 robot controller systems. Verify the part number on your existing pendant and confirm the controller model before ordering a replacement.
How can I identify the correct replacement for my JZRCR-NPP01B-1 teach pendant?

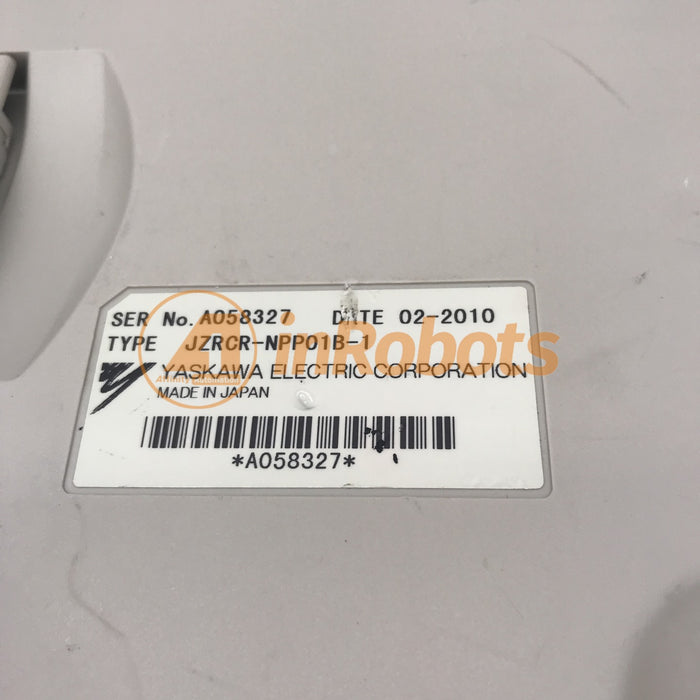

Check the identification label on your existing pendant for the model number JZRCR-NPP01B-1. If the label is missing or unclear, provide photos of the pendant and its identification markings to help verify the correct replacement.
Can I repair the JZRCR-NPP01B-1 without replacing the complete teach pendant?
Yes, if the fault is limited to a replaceable component and the rest of the pendant remains suitable for use. Identifying the failed component first can help determine whether component-level repair is a practical alternative to complete pendant replacement.
What replacement parts are available for the JZRCR-NPP01B-1?
Available repair components include the teach pendant cable, LCD screen, membrane keypad, touch screen, housing, enable switch, E-stop button, and switch key. Confirm the required part and its compatibility with your pendant before ordering.
Does the JZRCR-NPP01B-1 come with a cable and overlay?
The specified configuration includes an 8-meter cable and is supplied without an overlay. If an overlay is required for your application, confirm the appropriate configuration before ordering.
What should I do if my NX100 teach pendant has a blank screen or unresponsive keys?
Check whether the problem is limited to the display or keypad, and inspect the pendant cable and connectors for visible damage. These symptoms do not by themselves identify the failed component, so further diagnosis may be needed before selecting a replacement part.
How can I confirm availability and condition before ordering a JZRCR-NPP01B-1?
Contact InRobots to confirm current availability, whether the unit is used or refurbished, and the condition of the specific item. Provide your required model number and any relevant photos to help clarify your replacement needs.
Why Choose InRobots
InRobots provides industrial robot spare parts and accessories for maintenance, commissioning, repair, and refurbishment applications.
Each Yaskawa NX100 JZRCR NPP01B 1 Teach Pendant is inspected prior to shipment to ensure proper functionality, durability, and reliable performance in demanding automation environments.
Installation Tip:
Before use, check that the pendant cable and controller interface are compatible with your NX100 system to ensure proper communication and operation.
