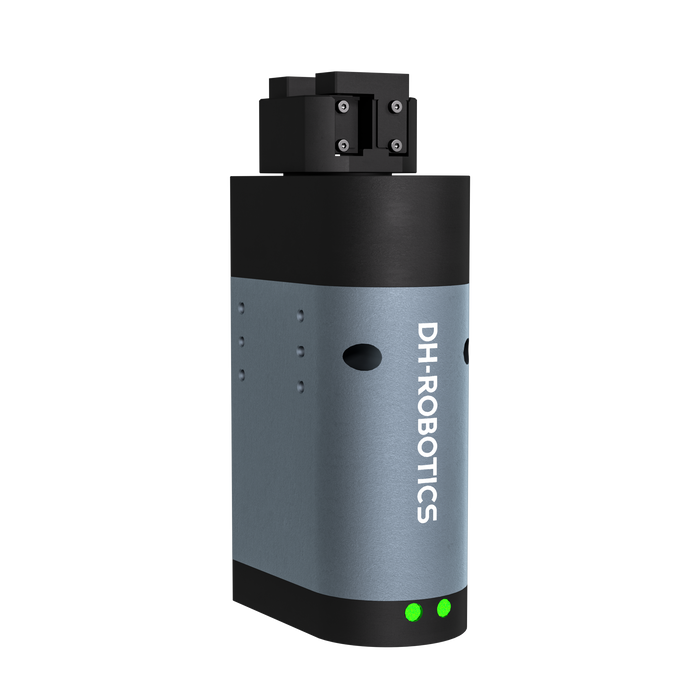

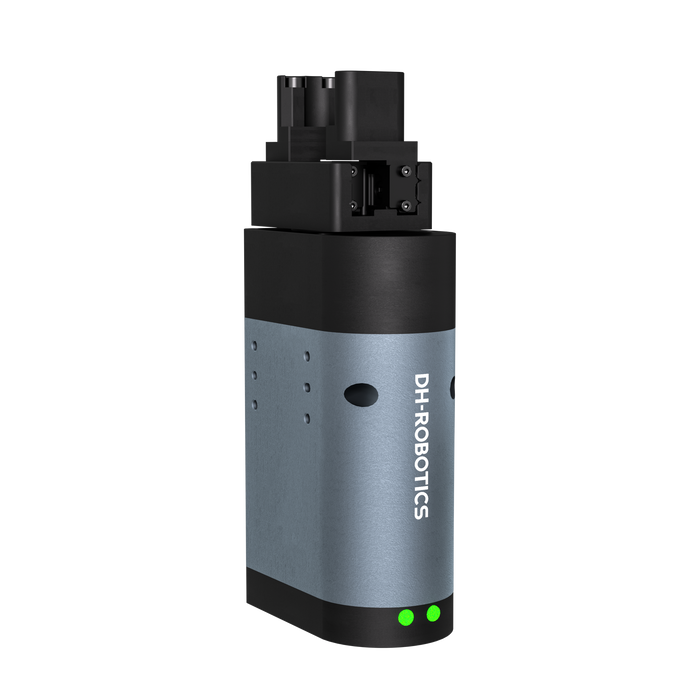

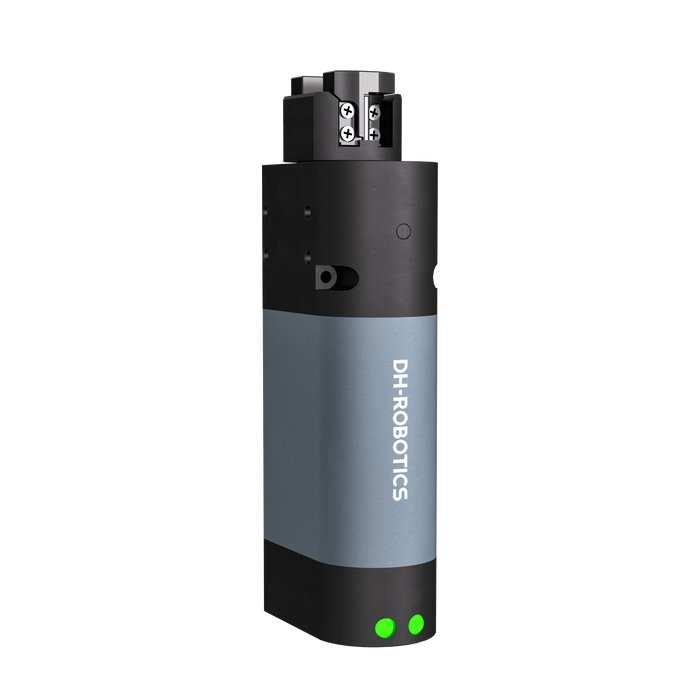

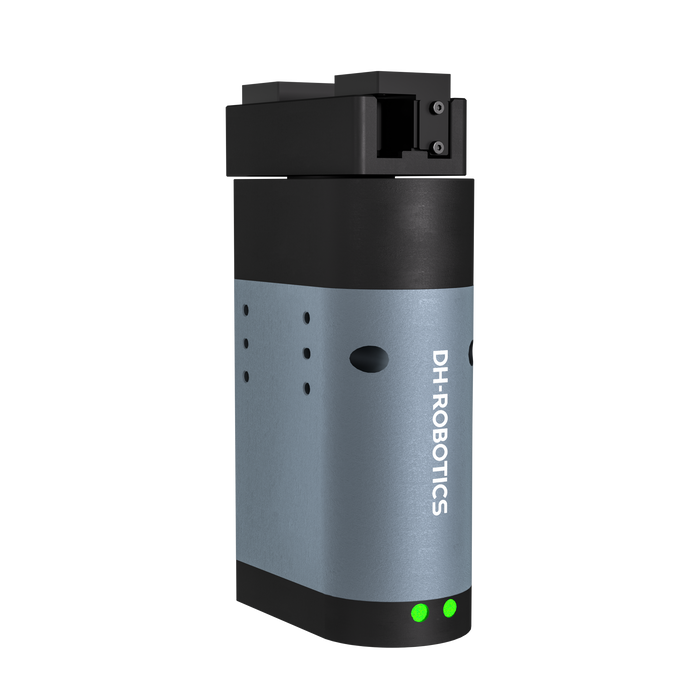

DH-ROBOTICS RGIC-Series

Name: DH-ROBOTICS RGIC-Series
Brand: DH-Robotics
Availability: InStock

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Quantity

Brand: DH-ROBOTICS
Model: RGIC-35-12
Condition: New
Category: DH-Robotics > Adaptive Gripper

Customs Policy

As a buyer, you should be aware of possible

Delays from customs inspection.
Import duties and taxes to be paid by the buyer.
Brokerage fees payable at the point of delivery.

Fully Tested

All the inRobots.shop spare parts are fully tested for good condition before shipping to our maintainer, retailer, manufacturer in Global.

Warranty Policy

New Condition: 360 Days from customer received.
Used Condition: 180 Days from customer received.

Shipment & Payment

Shipment
Part location: Hong Kong / Shen Zhen
Ships to: Global
Express by: FEDEX | DHL | UPS | Economy Shipping
Handling time: Within 1-2 business days when funds received

Payment
Paypal
Bank Wire Transfer
Credit Card
Shop Pay
Gpay
Apply Pay
More Payment methods is coming.

Backed by DH-Robotics’ robust R&D capabilities, the RGI series is the first independently developed infinite servo rotary gripper. With a compact and precise structure, our product has proven reliability in real-world industrial applications. This gripper is widely used in medical automation, efficiently handling and rotating test tubes. Additionally, it plays a critical role in electronics, new energy, and other intelligent manufacturing industries, meeting the evolving demands of modern automation. Quote now to experience reliable, efficient, and high-performance automation solutions with DH-Robotics!

	RGIC-35-12	RGI-100-14	RGI-100-22	RGI-100-30	RGIC-100-35

Gripping force (per jaw)	13~35 N	30~100 N	30~100 N	30~100 N	40-100N
Stroke	12 mm	14 mm	22 mm	30 mm	35 mm
Rated torque	0.2 N·m	0.5 N·m	0.5 N·m	0.5 N·m	0.35 N·m
Peak torque	0.5 N·m	1.5 N·m	1.5 N·m	1.5 N·m	1.5 N·m
Rotary range	Infinite rotating	Infinite rotating	Infinite rotating	Infinite rotating	Infinite rotating
Recommended workpiece weight	0.5 kg	1.28 kg	1.40 kg	1.5 kg	1.0 kg
Max. rotation speed	2160 deg/s	2160 deg/s	2160 deg/s	2160 deg/s	1400 °/s
Repeat accuracy (swiveling)	± 0.05 deg	± 0.05 deg	± 0.05 deg	± 0.05 deg
Repeat accuracy (position)	± 0.02 mm	± 0.02 mm	± 0.02 mm	± 0.02 mm	± 0.02 mm
Opening/Closing time	0.6 s/0.6 s	0.60 s/0.60 s	0.65 s/0.65 s	0.7 s/0.7 s	0.9 s/0.9 s
Weight	0.64 kg	1.28 kg	1.4 kg	1.5 kg	0.65 kg
Size	150 mm x 53 mm x 34 mm	158 mm x 75.5 mm x 47 mm	158 mm x 75.5 mm x 47 mm	158 mm x 75.5 mm x 47 mm	159 x 53 x 34 mm
Communication interface	Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, CAN2.0A, PROFINET, EtherCAT				Standard: Modbus RTU（RS485）， Digital I/O(2 inputs 2 outputs) Optional: TCP/IP，CAN2.0A，PROFINET，EtherCAT
Rated voltage	24 V DC ± 10%	24 V DC ± 10%	24 V DC ± 10%	24 V DC ± 10%
Rated current	1.7 A	1.0 A	1.0 A	1.0 A	2.0 A
Peak current	2.5 A	4.0 A	4.0 A	4.0 A	5.0 A
IP class	IP 40
Recommended environment	0~40°C, under 85% RH
Certification	CE，FCC，RoHS
