ABB FlexPendant Keyboard Replacement Complete Video Repair Guide
10 Simple Steps to Replace ABB Teach Pendant Keyboard
inRobots Repair Video Guide #2
Product Introduction

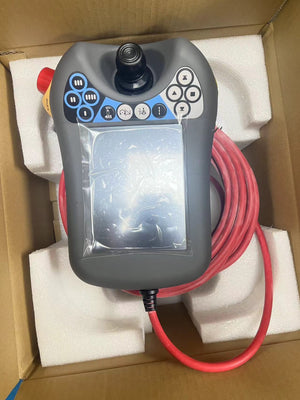

- Part No: 3HAC028357-001 Keypad
- ABB Type Designation: 10m
- Description: ABB teach pendant keypad for DSQC679
- Application: ABB IRC5C Compact Controller
Brief Repair Instructions
- Open the back cover of the teach pendant
- Take out internal parts
- Remove keypad soft cable
- Remove old keypad
- Install new keypad
- Reconnect soft cable
- Reinstall internal parts
- Close back cover
- Install teach pendant cable
- Lock the cover
- Difficulty: Medium
- Steps: 10
- Time Required: 30–45 minutes
Step-by-Step Guide
Step 1: Open the back cover
- Remove the teach pendant cable first
- Unscrew the 6 screws on the back shell
Step 2: Remove internal parts
- Remove emergency stop switch and components
- Be careful with internal wiring
Step 3: Remove keypad cable
- Unlock the clasp before pulling cable
Step 4: Remove old keypad
- Use a tool carefully to remove keypad
Step 5: Install new keypad
- Remove protective layer
- Insert cable through hole
Step 6: Reconnect cable
- Secure cable properly
Step 7: Reinstall parts
- Reconnect all components correctly
Step 8: Close back cover
- Ensure proper alignment before tightening screws
Step 9: Install cable
- Reconnect connectors
Step 10: Lock cover
- Secure the cover firmly
