KUKA KSS00009 Limit Switch Error-Causes, Symptoms & How to Fix

Error Code Overview

• Error Code: KSS00009
• Alarm Message: Limit Switch Error
• Category: axis Safety / Travel Limit / Position Monitoring
• Severity: High
• System: KRC4 Controller / KUKA Servo Drives (KSP/KPP)
• Impact: Robot motion blocked until limit switch issue is resolved

Quick Fix for KUKA KSS00009

If KUKA KSS00009 Limit Switch Error appears:

• Check which axis triggered the alarm in SmartHMI
• Verify the axis is not physically at its travel limit
• Inspect mastering/reference values
• Confirm encoder/resolver feedback is stable
• Check limit sensor wiring and signal input
• Reset the alarm after resolving the cause

KSS00009 usually indicates the controller believes an axis has exceeded or reached its permitted travel range.

What Does KUKA KSS00009 Mean?

KSS00009 means the robot controller has detected that an axis has reached, exceeded, or falsely triggered its travel limit condition.

Th is protection exists to:

• revent mechanical overtravel
• avoid joint or tooling collisions
• rotect motors and gearboxes from excessive movement

When triggered:

• robot motion is immediately restricted
• affected axis movement may be blocked
• automatic operation stops until cleared

Common Causes of KUKA KSS00009 Limit Switch Error

1. axis Reached Mechanical or Software Travel Limit

The most common cause is that the robot axis has physically moved to its permitted limit.

Typical scenarios:

• overtravel during jogging
• incorrect taught position
• excessive manual movement during maintenance

2. Incorrect Mastering or Reference Data

If axis calibration is wrong:

• the controller may incorrectly calculate axis position
• false limit switch alarms can occur even when physically in range

Th is often happens after:

• improper mastering
• gearbox replacement
• encoder recalibration

3. Encoder / Resolver Feedback Errors

Unstable feedback may cause false position readings.

Possible issues:

• encoder drift
• feedback noise
• damaged signal cable

4. Faulty Limit Sensor / Input Signal

Some KUKA systems use dedicated limit/reference inputs.

Potential failures include:

• damaged sensor
• loose connector
• roken wiring

5. Incorrect axis Configuration Parameters

Improper motion/limit parameters may define incorrect travel boundaries.

Often occurs after:

• WorkVisual deployment
• arameter restore
• robot/controller mismatch

How to Troubleshoot KUKA KSS00009

Step 1 – Identify the Affected axis

Use SmartHMI diagnostics to determine:

• which axis triggered the alarm
• current axis position

Step 2 – Verify Physical axis Position

Inspect whether the robot is:

• ear maximum travel
• mechanically overextended
• in collision/obstruction state

Step 3 – Check Mastering Values

Confirm:

• mastering data is valid
• o recent mastering/calibration issues exist

Step 4 – Inspect Feedback Signals

Verify:

• encoder/resolver signals are stable
• o intermittent feedback loss exists

Step 5 – Check Limit Sensor Inputs

Inspect:

• ensor activation state
• wiring/connector integrity
• input signal diagnostics

Step 6 – Review axis Parameters

Validate:

• travel limit settings
• axis software boundaries
• configuration data

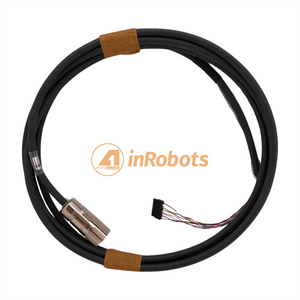

Recommended Replacement Parts

Professional Diagnostic Tip

If KSS00009 appears while the robot is far from any physical limit, the cause is often not the switch itself.

Instead suspect:

• ad mastering
• encoder drift
• incorrect axis configuration

False limit switch alarms are commonly caused by calibration/feedback problems rather than actual overtravel.

How to Fix KSS00009 Permanently

Dependingon root cause:

• Actual Overtravel → Move axis back within safe range
• Bad Mastering → Re-master affected axis
• Feedback Fault → Repair encoder/resolver wiring
• Sensor Fault → Replace limit sensor/input device
• Config Error → Reload correct axis parameters

How to Prevent Future Limit Switch Errors

To reduce KSS00009 recurrence:

• Avoid jogging axes beyond safe range
• Validate mastering after maintenance
• Inspect encoder wiring regularly
• Check travel limits after software changes
• Prevent manual axis movement with brakes released

Related Errors

• KUKA KSS00007axis Homing Error – Homing needed to synchronize axes.
• KUKA KSS00008Mastering Required Error – Absolute position calibration required.
• KUKA KSS00402Resolver Error– Position feedback failure affecting axis limits.
• KUKA KSS00403Encoder Error– Encoder malfunction can trigger limit switch faults.
• KUKA KSS00406Position Deviation Error – axis moved outside expected path.
• KUKA KSS00037axis Configuration Error – Parameter mismatch causing false triggers.

⚠️ Limit switch errors are tightly linked to axis safety, homing, and position calibration systems.

FAQ

What causes KUKA KSS00009?

Usually axis overtravel, bad mastering, encoder issues, or faulty limit input signals.

Can the robot move with KSS00009 active?

No. Motion is restricted until the travel limit issue is resolved.

Why does KSS00009 appear after mastering?

Incorrect mastering may cause false axis position calculations that trigger limit alarms.

Can encoder faults trigger KSS00009?

Yes. Incorrect feedback can make the controller think the axis exceeded limits.
