Yaskawa A.850 Position Error: Causes, Troubleshooting & Repair Guide
Error Overview
- Alarm Code: A.850
- Type: Position Error
- Category: Servo / Motion Control
- Severity: High (can stop robot or reduce accuracy)
- Related System: Servo motor, encoder, mechanical transmission, servo drive
Field Insight
In real-world applications, the Yaskawa A.850 position error is usually caused by a mismatch between commanded position and actual movement.
Th is commonly occurs when the servo system cannot achieve the required positioning accuracy due to mechanical resistance, poor tuning, unstable feedback, or insufficient torque.
What Does Yaskawa A.850 Position Error Mean?
The Yaskawa A.850 alarm occurs when the actual axis position deviates beyond the allowable tolerance range.
In simple terms:
The motor cannot accurately reach the commanded position, so the system stops to prevent motion instability or accuracy loss.
This is what differentiates A.850 from other motion-related alarms:
- A.720 overload alarm→ torque or load issue
- A.840 overvoltage alarm→ speed or deceleration instability
- A.850 position error→ final positioning mismatch
Quick Fix (5-Minute Check First)
Before deep troubleshooting, try th is:
- Reduce speed and acceleration
- Restart system
- Check for mechanical obstruction
- Verify recent parameter changes
If the alarm disappears at lower speed, the issue is typically related to tuning, load, or dynamic response.
Common Symptoms of A.850 Position Error
- Robot cannot reach target position
- Motion stops before completing the programmed path
- Position accuracy decreases over time
- Alarm appears during precise motion tasks
- axis movement shows lag or del
Main Causes of Yaskawa A.850 Alarm
1. Excessive Load or Mechanical Resistance (Most Common)
- Payload too high
- Friction or binding
- External mechanical force
These conditions prevent the motor from reaching the commanded position accurately.
2. Servo Tuning Issues
- Gain settings too low
- Slow servo response
- Improper tuning after maintenance or parameter changes
3. Mechanical Transmission Problems
- Gearbox wear
- Coupling looseness
- Backlash or misalignment
4. Encoder Feedback Instability
- Inaccurate position feedback
- Encoder signal fluctuation
- Cable-related instability
5. Motor Capacity Mismatch
- Undersized servo motor
- Insufficient torque output
- Poor inertia matching
In some cases, continuous tracking instability may also trigger motion-related faults.
If the robot shows lag during movement rather than only at the final position, reviewing Yaskawa A.860 following error troubleshooting may help identify the difference.
How to Troubleshoot Yaskawa A.850 Position Error
Unlike current or temperature alarms, A.850 troubleshooting focuseson positioning accuracy and motion response.
Step 1 – Identify When the Alarm Appears
- During precise motion→ tuning issue
- Under load→ mechanical or torque issue
- Random→ feedback instability
Step 2 – Check Load and Resistance
- Reduce payload
- Remove external force
- Manually test axis movement
If the alarm disappears after reducing resistance, overload or friction is the likely root cause.
If excessive load is suspected, reviewing Yaskawa A.720 overload alarm troubleshooting can help confirm whether torque limitations are involved.
Step 3 – Inspect Mechanical System
- Check gearbox condition
- Inspect couplings and alignment
- Look for backlash or abnormal wear
- Ensure smooth and consistent movement
Mechanical wear is one of the most common long-term causes of positioning errors.
Step 4 – Review Servo Parameters and Tuning
- Increase servo gain if response is too slow
- Optimize motion response parameters
- Re-tune the servo system after mechanical changes
Proper tuning is critical for maintaining positioning accuracy.
Step 5 – Verify Encoder Feedback Stability
- Inspect encoder signal quality
- Check connectors and cable condition
- Verify stable feedback transmission
In many industrial environments, intermittent feedback problems are caused by worn wiring.
Inspect Yaskawa motor cables and encoder cables if unstable position signals are suspected.
Step 6 – Evaluate Motor Capability
If the motor cannot maintain required positioning accuracy under load, torque capacity may be insufficient.
In these situations, evaluating compatible Yaskawa servo motors can help restore stable positioning performance.
Key Diagnostic Signs of Yaskawa A.850 Position Fault
|
Symptom |
Likely Cause |
|
Cannot reach position |
Load or motor issue |
|
Accuracy loss |
Tuning problem |
|
Lagging motion |
Gain too low |
|
Random position error |
Encoder issue |
Recommended Parts for A.850 Repair
Once the root cause is confirmed, the issue is usually related to one of the following components:
Servo Motors
If torque output is insufficient or response is too slow, selecting a suitable model from your Yaskawa servo motors range helps restore position accuracy.
Motor Cables
Stable encoder feedback is critical. Inspect or replace worn Yaskawa motor cables if signal instability is suspected.
Mechanical Components
Gearboxes, couplings, and transmission parts must operate smoothly to maintain positioning accuracy.
Yaskawa A.850 Alarm: Repair or Replace Decision Guide
Repair (Recommended First)
- Servo tuning adjustment
- Load reduction
- Mechanical correction
- Encoder feedback inspection
Replace (When Necessary)
- Motor is undersized for application
- Persistent positioning errors remain
- Mechanical wear cannot be corrected
In production environments, repeated A.850 alarms often indicate gradual performance degradation rather than temporary tuning issues.
Prevention Tips
- Maintain proper servo tuning
- Keep payload within design limits
- Inspect mechanical systems regularly
- Ensure stable encoder signal transmission
- Avoid excessive backlash or friction buildup
Related Yaskawa Alarm Codes
Understanding Yaskawa Alarm Codes helps isolate root causes more efficiently:
- Yaskawa A.840 overvoltage alarm troubleshooting(speed and deceleration instability)
- Yaskawa A.720 overload alarm troubleshooting(mechanical load issues)
- Yaskawa A.860 following error troubleshooting(continuous tracking instability)
These alarms are frequently interconnected in high-speed robotic systems.
FAQ
What is the most common cause of Yaskawa A.850 position error?
Mechanical resistance, excessive load, or improper servo tuning are the most common causes.
Can servo tuning fix A.850 alarm?
Yes. If the issue is parameter-related and no major mechanical wear exists, proper tuning can often resolve the problem.
Can encoder problems trigger A.850 errors?
Yes. Unstable encoder feedback or signal loss can cause inaccurate position tracking.
Do I need to replace the servo motor?
Only if the motor cannot provide sufficient torque or maintain positioning accuracy under load.
What is the difference between A.850 and A.860 alarms?
A.850 focuseson final positioning accuracy, while A.860 relates to continuous motion tracking during movement.
Explore the Full Guide: Industrial Robot Fault Codes Library → Yaskawa Alarm Codes
Explore the complete guide for troubleshooting, repair strategies, and component replacement across industrial robot systems.

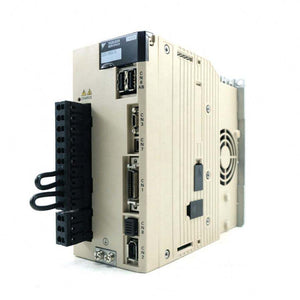

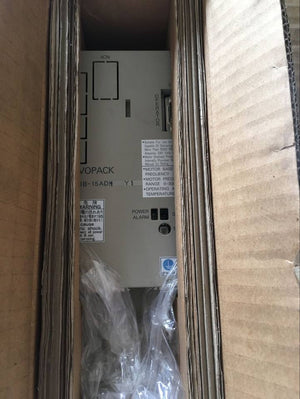

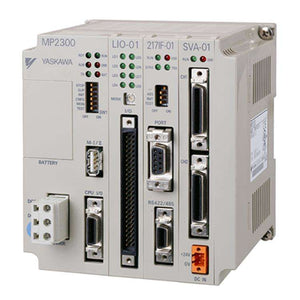

🔧 Recommended Parts for Yaskawa Alarm Troubleshooting
