Yaskawa Control Board Failure: Causes, Troubleshooting & Repair Guide
1. What Does Yaskawa Control Board Failure Mean?
A Yaskawa control board failure occurs when the servo drive’s internal PCB (Printed Circuit Board) can no longer process control logic reliably.
Common Symptoms:
- Multiple unrelated alarms appearing at the same time
- Communication instability between controller and drive
- Unpredictable or erratic motion behavior
- Drive stops without a clear single fault
Key Insight:
If your system shows multiple unrelated errors or unstable behavior, the issue is often not external components — but the control board itself.
What the Control Board Does:
- Processes control signals between system modules
- Executes motion control logic
- Communicates with encoder, motor, and controller
Once th is layer becomes unstable, the entire motion control loop is affected.
2. Common Causes of Yaskawa Control Board Failure (PCB, Thermal & Electrical Issues)
Control board failures typically develop gradually, except in cases of electrical damage.
① PCB Component Degradation (Primary Cause)
- Long-term thermal stress
- Aging capacitors and IC components
- Continuous high-duty operation
Field Insight:
Most control board failures are the result of slow internal degradation over time.
② Electrical Damage
- Power surges
- Voltage spikes
- Improper grounding
Can cause instant PCB failure, especially in logic circuits.
③ Overheating
- Cooling fan failure
- Blocked airflow
- High ambient temperature
Accelerates aging of components and solder joints
④ Solder Joint Fatigue
- Thermal expansion cycles
- Micro-cracks in solder connections
Leads to:
- Intermittent faults
- Random communication issues
- Failures after warm-up
⑤ Environmental Factors
- Dust accumulation
- Humidity or condensation
May cause corrosion or partial short circuits over time
3. How to Troubleshoot Yaskawa Control Board Failure
Control board failure is usually confirmed through exclusion, not direct measurement. The goal is to eliminate external variables first.
Step 1 – Identify Symptoms
Typical indicators include:
- Multiple unrelated alarms across different functions
- Communication instability between controller and drive
- Unpredictable system behavior
In field diagnostics, th is pattern is often associated with control logic instability.
Step 2 – Check External Components
Before suspecting the PCB, verify:
- Motor condition
- Cable integrity
- Power supply stability
🔧 The 5-Minute External Elimination Test
Disconnect external components step by step:
- Motor
- Encoder cable
- Communication cables
If the system still shows faults after isolation, the issue is typically inside the drive.
If symptoms disappear, the fault is likely external.
Step 3 – Observe Alarm Behavior
- Random or shifting alarms → possible PCB instability
- Repeating single alarm → subsystem-specific issue
🔧 The 5-Minute Stability Test
Power cycle the system and observe:
- Temporary recovery → early-stage PCB instability
- Immediate failure at startup → more severe board-level damage
Step 4 – Physical Inspection
Check inside the drive for:
- Burn marks or discoloration
- Unusual odor from components
- Visible overheating signs
Key Diagnostic Signs of Yaskawa PCB Failure
- Multiple unrelated error codes → likely PCB or control logic issue
- Intermittent recovery after restart → early degradation stage
- No communication response → severe control board failure
4. Key Diagnostic Patterns (Quick Judgment)
- Multiple unrelated errors → Control board failure
- Intermittent recovery after restart → PCB degradation
- No communication → Severe control board damage
5. Recommended Solutions (diagnosis-Based)
Replace Servo Drive (Most Common Solution)
- Required when PCB is integrated
- Resolves multi-function instability
- Restores full control logic reliability
Replace Control Board (If Serviceable)
- Used in modular drive designs
- Targeted repair option
Practical Insight:
When multiple system functions fail simultaneously and external components are normal, the issue is almost always inside the control board or drive.
6. Fix the Problem Fast (Drive-Level Solutions)
Yaskawa Servo Drive (Primary Solution)
Best for:
- Multiple unrelated alarms
- Unstable or unpredictable system behavior
- Confirmed external components are normal
Why it works:
- Replaces entire control logic system
- Eliminates hidden PCB degradation
- Ensures stable motion control
Typical series:
- SGDV (Sigma-5)
- SGD7S (Sigma-7)
- SGDH / SGDS
Recommended Action:
Replace the drive when PCB instability is confirmed
Decision Tip:
If your system shows multiple unrelated alarms or unstable behavior, replacing the Yaskawa servo drive resolves the issue in most cases.

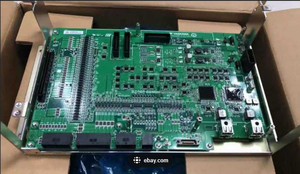

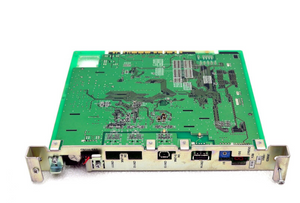

Yaskawa Control Board (If Replaceable)
Best for:
- Specific serviceable models
- Targeted PCB replacement
Why it works:
- Restores control logic function
- Lower cost than full drive replacement
Compatible Systems
- Yaskawa Sigma-5 / Sigma-7
- Motoman DX100 / DX200
- YRC1000 controllers
Always verify model compatibility before ordering.
Fast Shipping & Support
- Fully tested before shipment
- Global express delivery
- Model matching support
- Bulk pricing available
Reduce downtime — restore control stability fast
Related Guides (Fix Faster)
- Yaskawa Power Supply Alarm – Troubleshooting Guide
- Servo Communication Errors – Full Guide
- Teach Pendant Not Working – Complete Guide
Yaskawa Control Board Failure: Repair or Replace Decision Guide
Repair (Limited Use)
- Component-level PCB repair
- Requires specialized tools and expertise
⚠️ Risk:
- Hidden faults remain
- Reduced long-term reliability
Replace (Recommended)
- Stable and predictable operation
- Eliminates complex PCB risks
- Faster recovery in production
Decision Rule:
If:
- Multiple unrelated alarms appear
- External components are confirmed normal
- System behavior is unstable
Control board failure is highly likely → Replace drive or PCB
Need Help Choosing the Right Model?
Send us your drive model — we’ll match the correct replacement.
FAQ
Q1: What are the signs of control board failure?
Multiple alarms, unstable motion behavior, and communication loss are typical indicators.
Q2: Can one PCB issue trigger different alarms?
Yes. Since the PCB manages multiple functions, failures can appear as unrelated alarms.
Q3: Can control boards be repaired?
In limited cases, yes, but reliability depends heavilyon repair quality and available tooling.
Q4: How do I confirm PCB failure?
If all external components are confirmed normal and issues persist, internal board failure is likely.
Q5: Is full drive replacement necessary?
If the PCB is integrated or damage is severe, replacing the entire drive is generally required.
