Yaskawa Teach Pendant Cable Failure: Symptoms, Diagnos is & Replacement Guide

Introduction

If your Yaskawa teach pendant is not working, showing a black screen, or disconnecting randomly, the issue may not be the pendant itself—it is often a cable failure.

In Yaskawa robot systems (DX100, DX200, YRC1000), the teach pendant cable is constantly subjected to bending, twisting, and industrial environments, making it one of the most common failure points.

This guide will help you:

• Identify Yaskawa teach pendant cable problems
• Diagnose intermittent or communication issues
• Confirm whether the cable is faulty
• Choose the right replacement solution

Common Symptoms of Yaskawa Teach Pendant Cable Failure

Cable-related issues often appear as unstable or misleading faults.

Watch for these signs:

• Yaskawa teach pendant not working intermittently
• Random disconnection during operation
• Black screen that recovers after movement
• Touchscreen or buttons not responding
• Communication errors with controller (DX / YRC systems)
• System works when the cable is moved

These are classic signs of a Yaskawa pendant cable failure—not a pendant hardware issue

Root Causes of Yaskawa Teach Pendant Cables Fail

Yaskawa pendant cables are designed for flexibility, but over time they degrade.

1. Continuous Bending Fatigue

• Repeated motion causes internal wire breakage
• Most common near connector ends

2. Internal Wire Fracture

• Cable looks fine outside
• Inside conductors are broken

3. Harsh Industrial Environment

• Oil, heat, and dust accelerate wear
• Cable insulation becomes brittle

4. Connector Wear or Loosening

• Pins may oxidize or loosen
• Causes intermittent signal loss

How to Diagnose Yaskawa Cable Failure

Follow this practical diagnostic process:

Step 1: Check for Intermittent Behavior

• Move or bend the cable slightly
• Does the screen flicker or reconnect?

If YES → High probability of cable failure

Step 2: Inspect Cable Physically

Look for:

• Cracks or cuts
• Flattened sections
• Loose connectors

Step 3: Test with a Known Good Cable

• Swap with another pendant cable if available
• If issue disappears → cable confirmed faulty

Step 4: Rule Out Other Components

Before replacing:

• Check power supply
• Verify controller status
• Inspect pendant itself

Repair or Replace? (Decision Guide)

In most industrial environments, replacement is faster, safer, and more cost-effective than repair

When You MUST Replace the Cable

Replace immediately if:

• Problem worsens over time
• Cable must be positioned to work
• Downtime risk affects production
• Failure occurs during operation

Delaying replacement can lead to unexpected robot stoppage and production loss.

Recommended Solution: Replace the Cable

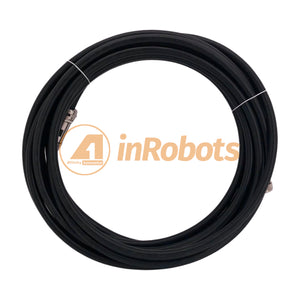

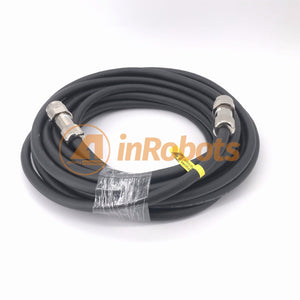

Once confirmed, replacing the Yaskawa Teach Pendant Cables is the most reliable solution.

What to look for:

• Compatible with Yaskawa teach pendants
• High-flex industrial-grade design
• Shielded for signal stability
• Durable connectors

💡 Pro Tips to Extend Cable Life

• Avoid sharp bending angles
• Use proper cable routing systems
• Reduce unnecessary movement
• Inspect regularly in high-use environments
• Replace before complete failure in critical lines

Related Troubleshooting Guides

To fully diagnose your issue, you may also need:

• Teach Pendant Not Working (Full Guide)
• Teach Pendant Dead / No Display
• Teach Pendant Black Screen
• Touchscreen Not Responding

FAQ

How do I know if my Yaskawa teach pendant cable is bad?

If the pendant works when the cable is moved, disconnects randomly, or shows intermittent black screen issues, the cable is very likely faulty.

Can a damaged cable cause a black screen?

Yes. A cable failure can interrupt power or signal transmission, causing a black or blank screen even if the pendant itself is functional.

Can I repair a Yaskawa pendant cable?

Minor connector issues may be repairable, but internal wire damage is not reliable to fix. Replacement is usually recommended.

What happens if I keep using a faulty cable?

It can lead to sudden disconnection, loss of control, and unexpected robot downtime, especially during operation.

Are all Yaskawa pendant cables the same?

No. Different systems (DX100, DX200, YRC1000) may use different cable types. Always choose a compatible replacement.

Conclusion

Yaskawa teach pendant cable failure is one of the most common—and most overlooked—causes of robot downtime.

Because the symptoms can mimic other issues, proper diagnos is is critical.

If your pendant shows intermittent faults, black screen, or unstable connection, replacing the cable is often the fastest and most reliable solution.
