ABB FlexPendant Keyboard Replacement Complete Video Repair Guide

10 Simple Steps to Replace ABB Teach Pendant Keyboard

inRobots Repair Video Guide #2

Product Introduction

  • Part No: 3HAC028357-001 Keypad
  • ABB Type Designation: 10m
  • Description: ABB teach pendant keypad for DSQC679
  • Application: ABB IRC5C Compact Controller

Brief Repair Instructions

  1. Open the back cover of the teach pendant
  2. Take out internal parts
  3. Remove keypad soft cable
  4. Remove old keypad
  5. Install new keypad
  6. Reconnect soft cable
  7. Reinstall internal parts
  8. Close back cover
  9. Install teach pendant cable
  10. Lock the cover
  • Difficulty: Medium
  • Steps: 10
  • Time Required: 30–45 minutes

Step-by-Step Guide

Step 1: Open the back cover

Open back cover
  • Remove the teach pendant cable first
  • Unscrew the 6 screws on the back shell

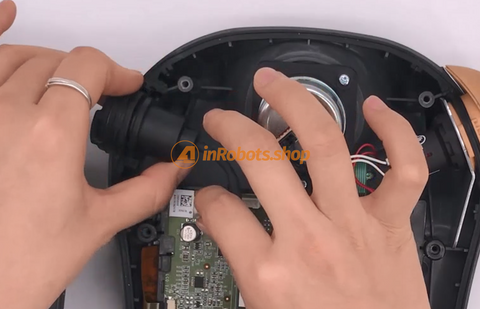

Step 2: Remove internal parts

Remove parts

  • Remove emergency stop switch and components
  • Be careful with internal wiring

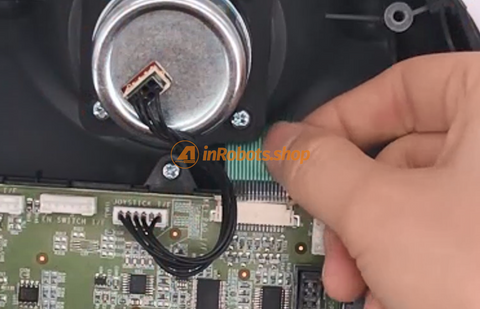

Step 3: Remove keypad cable

Remove keypad cable

  • Unlock the clasp before pulling cable

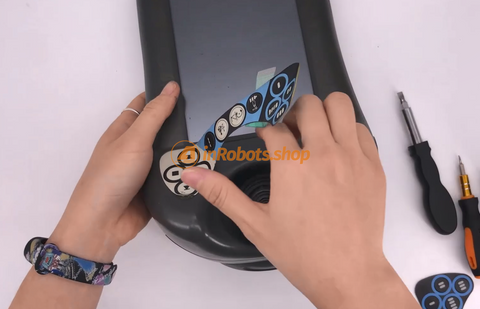

Step 4: Remove old keypad

Remove keypad

  • Use a tool carefully to remove keypad

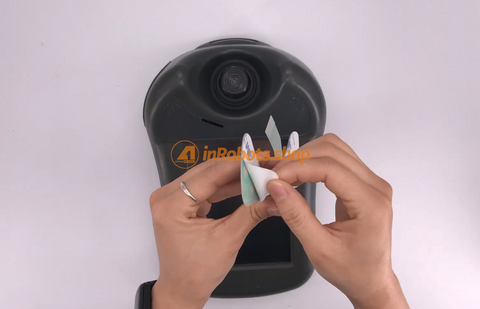

Step 5: Install new keypad

Install keypad

  • Remove protective layer
  • Insert cable through hole

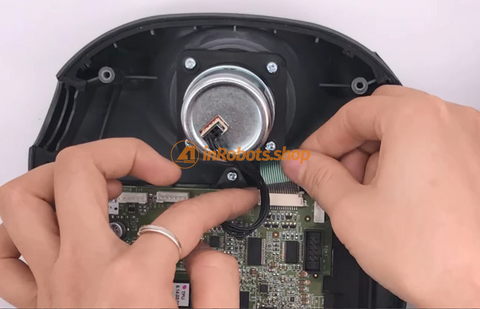

Step 6: Reconnect cable

Reconnect cable

  • Secure cable properly

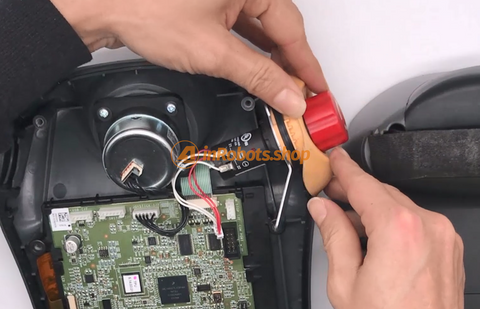

Step 7: Reinstall parts

Reinstall parts

  • Reconnect all components correctly

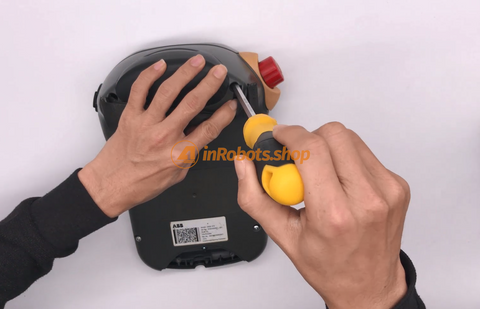

Step 8: Close back cover

Close cover

  • Ensure proper alignment before tightening screws

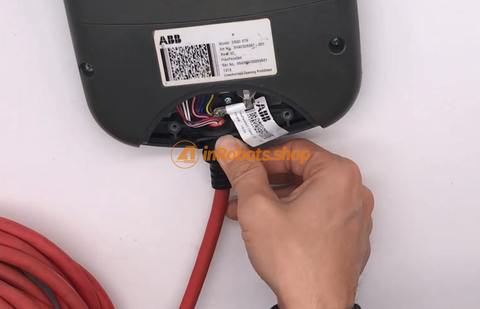

Step 9: Install cable

Install cable

  • Reconnect connectors

Step 10: Lock cover

Lock cover
  • Secure the cover firmly
