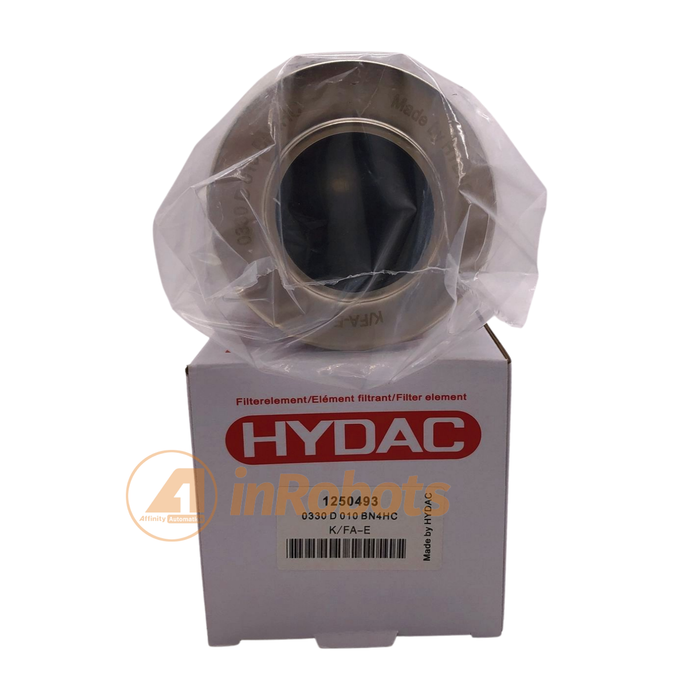

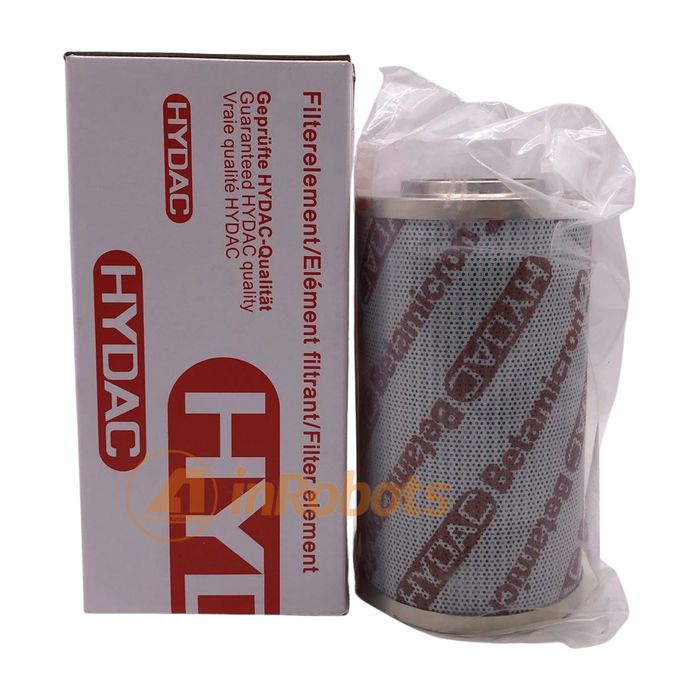

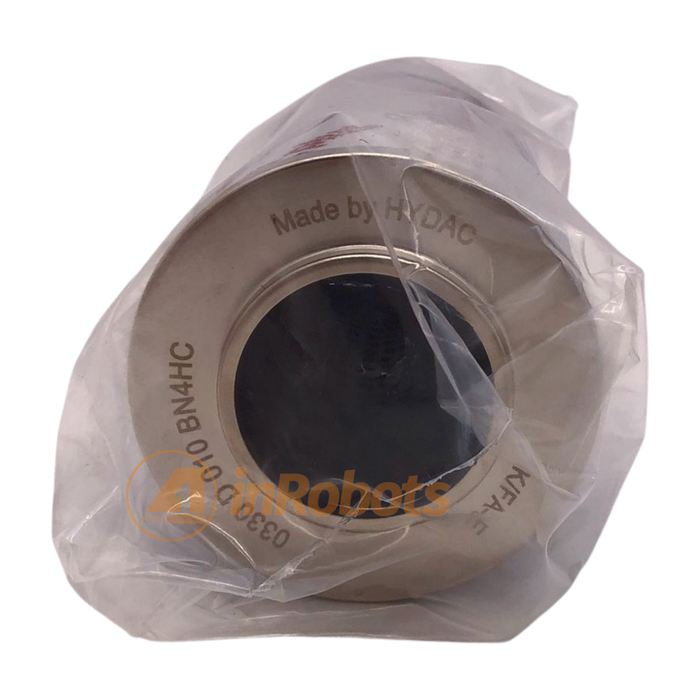

The HYDAC 0330 D 010 BN4HC is a Betamicron® filter element designed for pressure filters, featuring a filtration rating of 10 µm. Here is a detailed description of the product:

1. Structure and Performance: The Betamicron® filter elements have a 3-stage structure that ensures maximum contamination retention and filtration performance. An additional drainage layer directs the fluid flow with optimal efficiency, achieving particularly favorable Δp/Q characteristics. The innovative bonding process used for the longitudinal seam guarantees that the cut ends of the mesh pack remain completely sealed even under high load variations, eliminating the possibility of particles crossing from the contaminated to the clean side .
2. Material and Design: To prevent the formation of zinc soap, which occurs mainly in conjunction with water-based fluids (HFA / HFC) and bio oils, no components containing zinc are utilized. The metal tube which forms a stable core inside the element is constructed as a spiral lock seam tube, providing consistent stability and a significant reduction in element weight. The pleated filter mesh pack is encased in a stable outer wrap, which distributes the incoming fluid evenly over the mesh pack and protects it from pulsating flows, achieving extremely high fatigue strength values .
3. Collapse Stability and Temperature Range: The collapse stability of BN4HC is 20 bar, and it has a temperature range of -30 °C to +100 °C. For sealing material FPM, the temperature range is to -10 °C .
4. Flow Direction: The flow direction for the filter element is from outside to inside .
5. Filtration Rating: The filtration rating for the HYDAC 0330 D 010 BN4HC is 10 µm, which is suitable for applications requiring the removal of larger particles from fluids .
6. Bypass and Pressure Features: As a pressure filter element ("D"), it does not have a bypass valve as standard .
7. Single Use Element: The filter element is designed as a single-use element, ensuring hygiene and preventing the reintroduction of contaminants into the system after use .
8. Customizable Outer Wrap: The outer wrap of the filter element can be printed with the customer's logo, adding a personalized touch and serving as a form of branding .
